How VRF AC Systems Work – Understanding the Technology Behind Superior Cooling in Coimbatore

Variable Refrigerant Flow technology is widely regarded as one of the most sophisticated air conditioning innovations of the modern era. Yet for many property owners and facility managers in Coimbatore who are considering VRF for the first time, understanding how these systems actually work can be challenging. InfraNeeds and our network of VRF AC experts in Coimbatore are here to demystify this powerful technology and help you make an informed decision for your building.

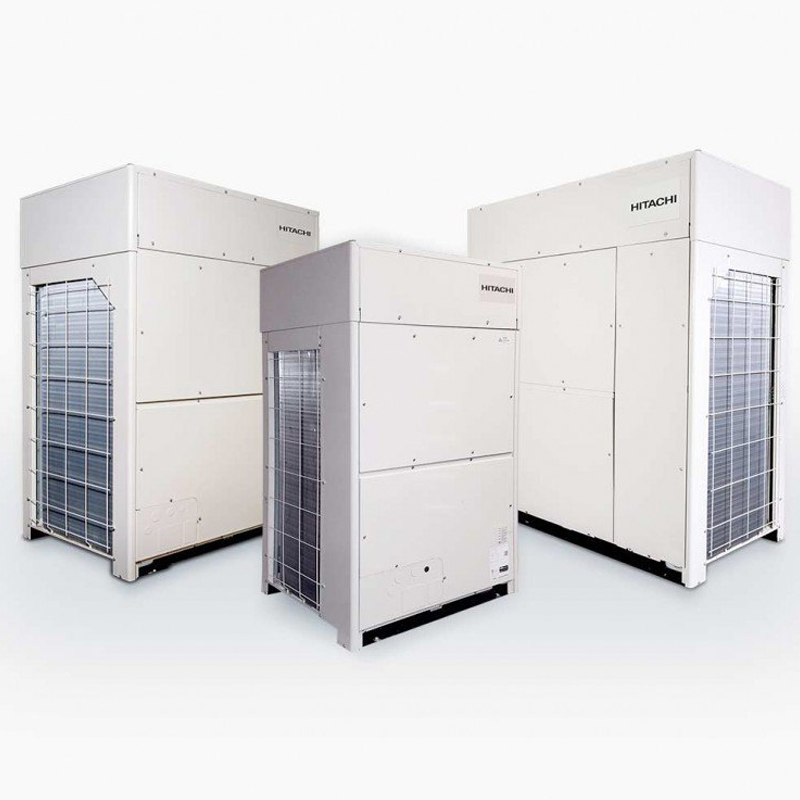

At the heart of every VRF system is an outdoor condensing unit equipped with one or more inverter-driven compressors. Unlike conventional fixed-speed compressors that operate at a single output level, inverter compressors can vary their speed continuously from a very low minimum to a high maximum, matching their output precisely to the total cooling demand of all connected indoor units at any moment. This variable-speed operation is the key to VRF's exceptional energy efficiency — the compressor never runs harder than necessary.

Refrigerant is transported from the outdoor unit to the indoor units through a network of insulated copper pipes. In a standard two-pipe VRF system, one pipe carries high-pressure liquid refrigerant to the indoor units while the other returns low-pressure gaseous refrigerant from the indoor units back to the outdoor unit. Each indoor unit contains an electronic expansion valve (EEV) that precisely meters the amount of refrigerant entering the unit based on a signal from the central controller. This is the core mechanism that allows each indoor unit to operate independently at different capacities simultaneously.

Three-pipe heat recovery VRF systems add a third pipe that carries intermediate-pressure refrigerant, enabling the system to simultaneously deliver cooling to some indoor units while delivering heating to others. In a large commercial building in Coimbatore, this means the east-facing offices that receive morning sun and require maximum cooling can be cooled simultaneously while the north-facing conference rooms that are cooler can be gently heated — all using the same outdoor unit and with a net energy benefit from transferring heat between zones rather than generating or rejecting it.

The refrigerant circuit in a VRF system can connect indoor units spread across very large distances. Modern VRF systems support indoor units located up to 165 metres from the outdoor unit in terms of equivalent pipe length, with height differences of up to 90 metres between outdoor and indoor units. This makes VRF systems suitable for tall commercial buildings, multi-floor hotels, and large hospital complexes in Coimbatore where a single outdoor unit can serve an entire floor or wing of a building.

Central and remote control interfaces are another important feature of VRF systems. Centralised controllers allow facility managers to monitor and adjust temperatures across an entire building from a single touchscreen interface. Integration with building management systems, smart building platforms, and even mobile applications gives property operators in Coimbatore unprecedented control over their building's cooling environment and energy consumption.

Speak with a VRF AC technology expert in Coimbatore through InfraNeeds today. Get free quotes and detailed technical guidance to help you choose the right VRF system configuration for your property.

VRF AC Installation Process in Coimbatore – Precision Engineering for Optimal Performance

The installation of a VRF air conditioning system is a highly technical process that demands specialized skills, precision tools, and meticulous attention to detail at every stage. Unlike conventional split or ducted AC installations, VRF systems involve complex refrigerant piping networks, multi-branch joints, precise refrigerant charge calculations, and sophisticated commissioning procedures. If you are planning a VRF AC installation in Coimbatore, InfraNeeds connects you with certified HVAC professionals who have the expertise and experience to install your system correctly and ensure it performs at its rated efficiency from day one.

The VRF installation process begins with a comprehensive site survey and system design phase. Our HVAC engineers assess the building layout, floor plans, ceiling heights, electrical supply specifications, and available space for the outdoor units. They then design the most efficient indoor unit layout and piping routing to minimize pipe lengths, avoid excessive bends, and ensure balanced refrigerant distribution across all indoor units. Modern VRF design software such as Daikin's xDesign or Mitsubishi Electric's MEVRF is used to simulate system performance and verify that the selected configuration meets all technical requirements.

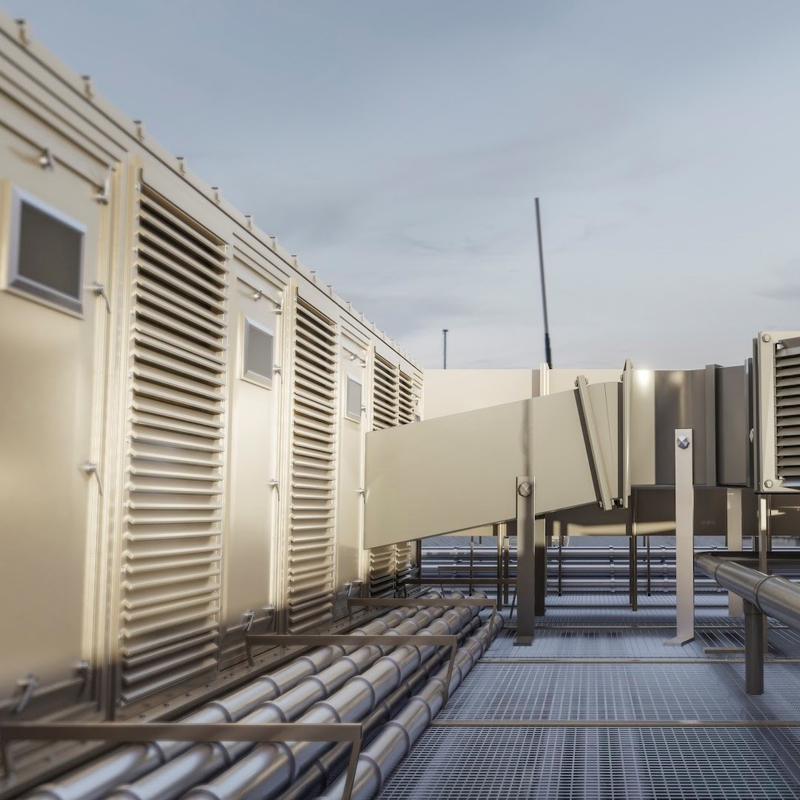

Outdoor unit placement is a critical decision in VRF installation. The condensing units must be positioned where they have adequate ventilation for heat rejection, structural support for their weight, and accessibility for maintenance. In multi-story commercial buildings in Coimbatore, outdoor units are typically placed on rooftops or dedicated equipment terraces. Our installation teams coordinate with structural engineers and architects to ensure proper mounting, vibration isolation, and weather protection for the outdoor units.

Refrigerant piping is the backbone of any VRF system and requires the highest level of care during installation. Our technicians use only refrigeration-grade copper pipes of the correct diameter for each branch of the system. All pipe joints are brazed using nitrogen-purged silver brazing techniques to ensure leak-free connections. The completed piping network is then pressure-tested with dry nitrogen to at least 1.5 times the maximum working pressure, held for a minimum of 24 hours to verify integrity before any refrigerant is introduced.

Following the pressure test, the entire piping network is subjected to a deep vacuum evacuation using a high-quality vacuum pump. This process removes all moisture and air from the pipes, which is critical for protecting the compressor and ensuring efficient refrigerant flow. Our technicians use electronic vacuum gauges to verify that the system reaches the required vacuum level and holds it, confirming that there are no leaks and the pipes are completely dry.

Indoor unit installation, cable routing, and drain pipe connections are completed in parallel with the piping work. Each indoor unit is mounted at the correct height and angle, and drain pipes are routed with the appropriate fall to ensure condensate drains reliably without overflow or leakage.

The final commissioning stage involves charging the system with the correct refrigerant quantity as specified by the manufacturer based on the measured pipe lengths and capacities, then running the system through all operating modes and verifying performance parameters.

Get your VRF AC system installed correctly the first time. Connect with certified VRF installation experts in Coimbatore through InfraNeeds and request your free quotes today.

VRF AC Energy Efficiency, Zoning Capabilities & Applications in Coimbatore – Smart Cooling for Every Building Type

When it comes to combining energy efficiency with superior comfort and flexibility, no air conditioning technology matches the capabilities of VRF systems. For property owners and facility managers in Coimbatore who are managing large commercial buildings or premium residential developments, the long-term energy and operational cost savings delivered by VRF AC systems make them the most financially sound choice available. InfraNeeds connects you with VRF specialists in Coimbatore who can design and install a system that maximizes these benefits for your specific property.

Energy efficiency is where VRF systems truly shine. Modern VRF systems from leading manufacturers achieve Energy Efficiency Ratios (EER) and Coefficients of Performance (COP) that are significantly higher than conventional chiller-based or split AC systems of comparable capacity. The primary reason for this superior efficiency is the variable-speed inverter compressor technology that adjusts cooling output in real time to match actual demand, rather than repeatedly cycling between full power and zero power as conventional fixed-speed systems do. Studies consistently show that VRF systems consume 30 to 40 percent less electricity than conventional HVAC systems of equivalent capacity in typical commercial building applications.

Heat recovery VRF systems achieve even higher effective efficiency by transferring heat energy between zones rather than rejecting it to the outdoor environment. In a typical Coimbatore office building on a warm afternoon, the sun-exposed south and west-facing offices generate significant heat loads that require maximum cooling, while interior meeting rooms and storage areas may actually benefit from gentle heating to maintain comfortable temperatures. A heat recovery VRF system handles both requirements simultaneously using a single refrigerant circuit, with the heat extracted from the cooling zones effectively providing free heating to the zones that need it. This simultaneous heat recovery process can result in system efficiency ratings several times higher than conventional systems.

Zoning flexibility is another major strength of VRF systems that has made them extremely popular for commercial applications in Coimbatore. A single VRF outdoor unit can connect to anywhere from 2 to 64 indoor units, each independently controlled for temperature and operating mode. This granular zone control is invaluable in environments such as hotels, where individual guest room temperature preferences must be accommodated, or in hospitals, where different areas such as operating theatres, ICUs, wards, and administrative offices all have vastly different temperature and air quality requirements.

The wide variety of indoor unit types available for VRF systems makes them suitable for virtually any interior design scenario. Ceiling cassette units provide 360-degree air distribution and are popular in open-plan offices and hotel lobbies. Concealed ceiling ducted units can be fully hidden within false ceilings for a completely flush appearance. Wall-mounted units are ideal for individual rooms where flexibility and cost are priorities. Floor-standing console units are suitable for spaces where ceiling installation is impractical, such as server rooms or heritage buildings.

VRF systems are the cooling solution of choice for IT parks, corporate campuses, five-star hotels, multi-specialty hospitals, shopping malls, educational campuses, and luxury residential developments throughout Coimbatore. Their combination of technical performance, design flexibility, energy efficiency, and long service life makes them the premium choice for any serious building project.

Discover the right VRF AC solution for your Coimbatore property. Request free quotes from verified VRF specialists through InfraNeeds today.

VRF AC System Maintenance, Repair & Why InfraNeeds is Coimbatore's Trusted VRF Partner

A VRF air conditioning system is a sophisticated and significant investment that requires professional, regular maintenance to deliver consistent performance and achieve its full service life potential of 15 to 20 years. Unlike simpler split AC systems that any technician can service, VRF systems demand specialized knowledge, calibrated tools, and manufacturer-specific training to maintain and repair correctly. If you have installed or are planning to install a VRF AC system in Coimbatore, InfraNeeds connects you with certified VRF service professionals who protect your investment and keep your system performing at its best year after year.

Preventive maintenance for VRF systems follows a structured schedule that typically includes monthly, quarterly, and annual service activities. Monthly checks cover the cleaning of indoor unit filters and drain trays, inspection of condensate drainage, verification of temperature set-points, and visual checks for any unusual noises or operational anomalies. Quarterly maintenance involves more detailed inspection of the refrigerant system, including checking operating pressures and temperatures, verifying electronic expansion valve operation, inspecting refrigerant pipe insulation for damage or moisture ingress, and testing all remote controllers and zone control interfaces.

Annual maintenance is the most comprehensive service event and includes a full inspection of the outdoor unit, cleaning of the condenser coil and fan blades, checking and tightening all electrical connections, measuring compressor operating parameters against factory specifications, verifying refrigerant charge, and performing a complete performance test of the entire system. Annual maintenance also typically includes a review of energy consumption data from the building management system, with recommendations for optimizing operation schedules and temperature set-points to further reduce electricity costs.

Fault diagnosis and repair of VRF systems requires technicians who are trained and certified by the equipment manufacturer. Modern VRF systems are equipped with sophisticated self-diagnostic capabilities that log error codes and operational anomalies in the system controller. Manufacturer-trained technicians can access these diagnostic logs using specialized service tools and software to identify the root cause of any fault quickly and accurately, minimizing system downtime. Our VRF service professionals in Coimbatore are trained by leading manufacturers including Daikin, Mitsubishi Electric, LG, Hitachi, Fujitsu, and Carrier, ensuring expert diagnosis and genuine spare parts for every repair.

Annual Maintenance Contracts for VRF systems offered by our listed service providers in Coimbatore range from basic inspection contracts to comprehensive all-inclusive AMC packages that cover all scheduled maintenance visits, emergency breakdown callouts, all labour costs, and commonly replaced consumable parts. Choosing a comprehensive AMC from the outset provides budget certainty and ensures your system is maintained to manufacturer standards throughout its life.

InfraNeeds is Coimbatore's most trusted platform for finding, comparing, and hiring verified VRF AC specialists. Our network of 20+ verified providers, zero-cost comparison model, and commitment to complete client privacy makes us the first choice for property owners and facility managers who want the best VRF AC solution without the stress of navigating an unfamiliar market. We list only verified professionals whose credentials, experience, and customer feedback meet our quality standards, giving you complete confidence in every recommendation.

Whether you need a new VRF system designed and installed, an existing system maintained, or an urgent breakdown repaired, InfraNeeds has the right professional for you in Coimbatore. Request your free quotes today and experience the InfraNeeds difference.
